Label position control

Camera system for measuring the label position on the component

Task

Position control of the label on the component. Tolerance +/-0.2 mm. The cameras are integrated into an automatic rotary indexing table and are connected downstream of the automatic labelling unit

Features

Camera system for measuring the label position on the component
External illumination
Sturdy mounting stand
Integration into automated rotary indexing table

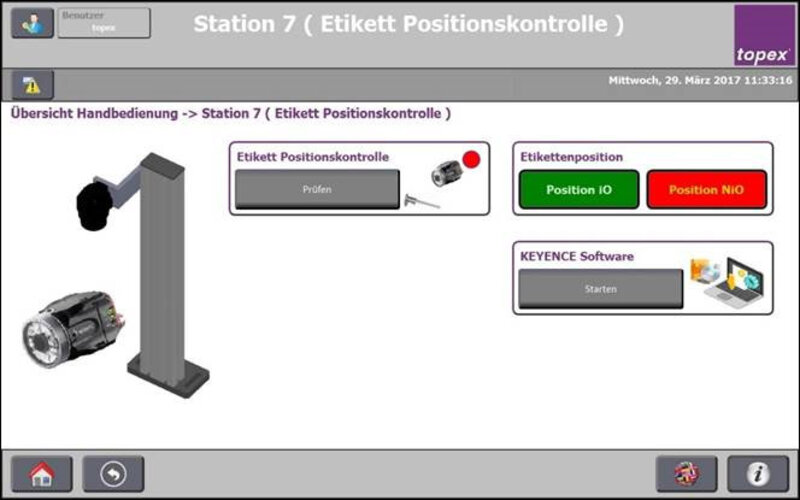

Integration and visualisation in Siemens S7-1500 controller

Camera with illumination for label position control
