Fully automatic door marking

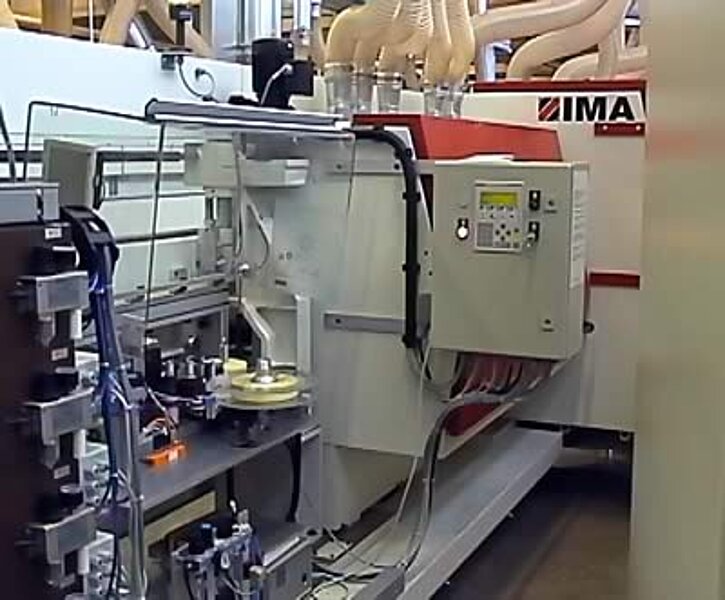

Fully automatic marking of doors within a formatting line.

Task

The doors are marked with a 35x346 mm label on passing the labelling machine. The labels are printed in accordance with code 128 and in clear type. The code is used by the customer both for internal warehousing logistics and for door processing operations. It stores specific, part-related data which are read out at the processing stations and which initiate the corresponding work stages.



Features

  • topex 1300-12-300 thermo transfer labelling machine
  • Festo two-axis pneumatic handling system
  • Vacuum box with label guide

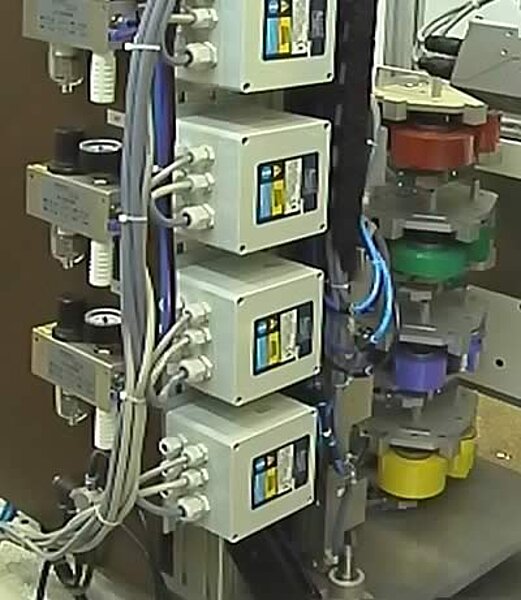

  • Four-colour hot stamping press
  • Dustproof wrapping with pneumatic window
  • Data access by topex to the customer's Siemens S7 PLC system
  • Scanner check reading
